TFTP Message Formats
(Page 2 of 5)

Read Request and Write Request Messages

These messages use a common message format, described in Table 235 and shown graphically in Figure 296.


Table 235: TFTP Read Request / Write Request Message Format

Field Name

Size (bytes)

Description

Opcode

2

Operation Code: Specifies the TFTP message type. A value of 1 indicates a Read Request message, while a value of 2 is a Write Request message.

Filename

Variable

Filename: The name of the file to be read or written.

Mode

Variable

Transfer Mode: The string “netascii” or “octet”, zero-terminated. (Why not just use one byte set to 0 for netascii and 1 for octet? Don't ask me! J)

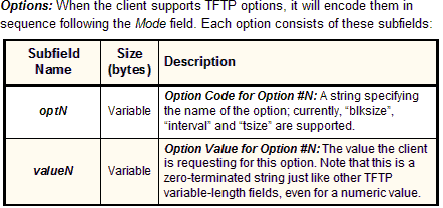

Options

Variable




Figure 296: TFTP Read Request / Write Request Message Format
